GTFS public transport¶
This notebook builds static public-transport UrbanGraph objects from GTFS Schedule feeds: it reads and validates a feed, selects a service day and time window, merges several feeds of one city, and joins the result to an OpenStreetMap walking network for routing.
The feeds are small synthetic examples placed on approximate coordinates in Saint Petersburg’s Vasileostrovsky District, so the notebook runs without downloading a real feed. Replace the paths with your own GTFS directories or ZIP archives.
# To install IduEdu in a clean environment:
# !pip install IduEdu
OSM_ID = 1114252
SERVICE_DATE = "2026-09-14" # a Monday
Example feeds¶
Three agencies publish their own feed, and each of them numbers its only route 1:
metro: two stations with entrances, escalator pathways and boarding areas, a
frequencies.txtservice every 4 minutes, and route geometry inshapes.txt;bus: five stops along Sredny Prospekt with a scheduled departure every 10 minutes and no shapes;
trolleybus: three stops with a scheduled departure every 12 minutes; its stop on Sredny Prospekt is about 10 m from the bus stop.
import tempfile
from pathlib import Path
import pandas as pd
FEEDS_DIR = Path(tempfile.mkdtemp(prefix="iduedu_gtfs_"))
WEEKDAYS = {
"monday": 1, "tuesday": 1, "wednesday": 1, "thursday": 1, "friday": 1, "saturday": 0, "sunday": 0,
}
def write_feed(name, **tables):
"""Write GTFS tables given as lists of rows to FEEDS_DIR / name."""
folder = FEEDS_DIR / name
folder.mkdir(parents=True, exist_ok=True)
for table, rows in tables.items():
pd.DataFrame(rows).to_csv(folder / f"{table}.txt", index=False)
return folder
def agency_and_calendar(agency_name):
return {
"agency": [
{"agency_id": "A", "agency_name": agency_name, "agency_url": "https://example.org", "agency_timezone": "Europe/Moscow"}
],
"calendar": [{"service_id": "weekdays", **WEEKDAYS, "start_date": "20260101", "end_date": "20261231"}],
}
def clock(minutes):
return f"{minutes // 60:02d}:{minutes % 60:02d}:00"
def scheduled_trips(stop_ids, run_minutes, first, last, headway):
"""Trips in both directions, leaving every `headway` minutes between `first` and `last` (minutes after midnight)."""
trips, stop_times = [], []
for direction, (stops, runs) in enumerate([(stop_ids, run_minutes), (stop_ids[::-1], run_minutes[::-1])]):
for departure in range(first, last, headway):
trip_id = f"{direction}-{clock(departure)[:5]}"
trips.append({"route_id": "1", "service_id": "weekdays", "trip_id": trip_id, "direction_id": direction})
minute = departure
for sequence, stop_id in enumerate(stops):
minute += runs[sequence - 1] if sequence else 0
stop_times.append(
{"trip_id": trip_id, "arrival_time": clock(minute), "departure_time": clock(minute), "stop_id": stop_id, "stop_sequence": sequence + 1}
)
return trips, stop_times
def station(prefix, name, lat, lon):
"""A station with a platform, a boarding area on that platform, and a street entrance."""
def near(d_lat, d_lon):
return {"stop_lat": round(lat + d_lat, 6), "stop_lon": round(lon + d_lon, 6)}
return [
{"stop_id": prefix, "stop_name": name, **near(0, 0), "location_type": 1, "parent_station": ""},
{"stop_id": f"{prefix}_P", "stop_name": f"{name} platform", **near(-0.00005, -0.00005), "location_type": 0, "parent_station": prefix},
{"stop_id": f"{prefix}_BA", "stop_name": f"{name} boarding area", **near(-0.00004, -0.00002), "location_type": 4, "parent_station": f"{prefix}_P"},
{"stop_id": f"{prefix}_E", "stop_name": f"{name} entrance", **near(-0.00040, 0.00050), "location_type": 2, "parent_station": prefix},
]
primorskaya = (59.94860, 30.23450)
vasileostrovskaya = (59.94270, 30.27830)
metro_shape = [primorskaya, (59.94660, 30.25600), vasileostrovskaya]
metro_dir = write_feed(
"metro",
**agency_and_calendar("Metro"),
stops=station("PRI", "Primorskaya", *primorskaya) + station("VAS", "Vasileostrovskaya", *vasileostrovskaya),
routes=[{"route_id": "1", "agency_id": "A", "route_short_name": "M3", "route_long_name": "Line 3", "route_type": 1}],
trips=[
{"route_id": "1", "service_id": "weekdays", "trip_id": "to_vas", "direction_id": 0, "shape_id": "to_vas"},
{"route_id": "1", "service_id": "weekdays", "trip_id": "to_pri", "direction_id": 1, "shape_id": "to_pri"},
],
stop_times=[
{"trip_id": "to_vas", "arrival_time": "07:00:00", "departure_time": "07:00:00", "stop_id": "PRI_P", "stop_sequence": 1},
{"trip_id": "to_vas", "arrival_time": "07:04:00", "departure_time": "07:04:00", "stop_id": "VAS_P", "stop_sequence": 2},
{"trip_id": "to_pri", "arrival_time": "07:00:00", "departure_time": "07:00:00", "stop_id": "VAS_P", "stop_sequence": 1},
{"trip_id": "to_pri", "arrival_time": "07:04:00", "departure_time": "07:04:00", "stop_id": "PRI_P", "stop_sequence": 2},
],
frequencies=[
{"trip_id": trip_id, "start_time": "06:00:00", "end_time": "23:00:00", "headway_secs": 240}
for trip_id in ("to_vas", "to_pri")
],
shapes=[
{"shape_id": shape_id, "shape_pt_lat": lat, "shape_pt_lon": lon, "shape_pt_sequence": sequence}
for shape_id, points in (("to_vas", metro_shape), ("to_pri", metro_shape[::-1]))
for sequence, (lat, lon) in enumerate(points, start=1)
],
pathways=[
{"pathway_id": f"{prefix}_escalator", "from_stop_id": f"{prefix}_E", "to_stop_id": f"{prefix}_BA", "pathway_mode": 4, "is_bidirectional": 1, "traversal_time": seconds}
for prefix, seconds in (("PRI", 120), ("VAS", 150))
],
)
bus_stops = [
("B1", "1-ya Liniya", 59.94120, 30.28550),
("B2", "7-ya Liniya", 59.94285, 30.27790),
("B3", "16-ya Liniya", 59.94480, 30.26500),
("B4", "24-ya Liniya", 59.94670, 30.25300),
("B5", "Kosaya Liniya", 59.94930, 30.23750),
]
bus_trips, bus_stop_times = scheduled_trips([stop_id for stop_id, *_ in bus_stops], [3, 4, 3, 4], 7 * 60, 10 * 60, 10)
bus_dir = write_feed(
"bus",
**agency_and_calendar("Bus"),
stops=[{"stop_id": stop_id, "stop_name": name, "stop_lat": lat, "stop_lon": lon} for stop_id, name, lat, lon in bus_stops],
routes=[{"route_id": "1", "agency_id": "A", "route_short_name": "7", "route_type": 3}],
trips=bus_trips,
stop_times=bus_stop_times,
)
trolleybus_stops = [
("T1", "Bolshoy Prospekt", 59.94200, 30.26200),
("T2", "Sredny Prospekt", 59.94488, 30.26508),
("T3", "Maly Prospekt", 59.94780, 30.26850),
]
trolleybus_trips, trolleybus_stop_times = scheduled_trips([stop_id for stop_id, *_ in trolleybus_stops], [3, 3], 7 * 60, 10 * 60, 12)
trolleybus_dir = write_feed(
"trolleybus",
**agency_and_calendar("Trolleybus"),
stops=[{"stop_id": stop_id, "stop_name": name, "stop_lat": lat, "stop_lon": lon} for stop_id, name, lat, lon in trolleybus_stops],
routes=[{"route_id": "1", "agency_id": "A", "route_short_name": "10", "route_type": 11}],
trips=trolleybus_trips,
stop_times=trolleybus_stop_times,
)
sorted(path.name for path in FEEDS_DIR.iterdir())
['bus', 'metro', 'trolleybus']
Read and validate a feed¶
read_gtfs_feed loads every table of a directory or ZIP archive as strings. validate_gtfs_feed checks the required tables and columns, unique identifiers and references between tables, and raises GTFSValidationError when the feed breaks them. The graph builder runs the same validation itself.
from iduedu.gtfs import read_gtfs_feed, validate_gtfs_feed
metro_feed = read_gtfs_feed(metro_dir)
validate_gtfs_feed(metro_feed)
print(sorted(metro_feed.tables))
metro_feed["stops"]
['agency', 'calendar', 'frequencies', 'pathways', 'routes', 'shapes', 'stop_times', 'stops', 'trips']
| stop_id | stop_name | stop_lat | stop_lon | location_type | parent_station | |
|---|---|---|---|---|---|---|
| 0 | PRI | Primorskaya | 59.9486 | 30.2345 | 1 | |
| 1 | PRI_P | Primorskaya platform | 59.94855 | 30.23445 | 0 | PRI |
| 2 | PRI_BA | Primorskaya boarding area | 59.94856 | 30.23448 | 4 | PRI_P |
| 3 | PRI_E | Primorskaya entrance | 59.9482 | 30.235 | 2 | PRI |
| 4 | VAS | Vasileostrovskaya | 59.9427 | 30.2783 | 1 | |
| 5 | VAS_P | Vasileostrovskaya platform | 59.94265 | 30.27825 | 0 | VAS |
| 6 | VAS_BA | Vasileostrovskaya boarding area | 59.94266 | 30.27828 | 4 | VAS_P |
| 7 | VAS_E | Vasileostrovskaya entrance | 59.9423 | 30.2788 | 2 | VAS |
Build a graph for one service day¶
service_date keeps the trips whose calendar runs on that day. start_time and end_time select the departures used to estimate boarding waits: for scheduled service the wait is half the mean gap between departures, so the bus leaving every 10 minutes gets a 5-minute boarding edge. A vehicle edge takes the median scheduled time between its two stops.
from iduedu import get_gtfs_public_transport_graph
bus_graph = get_gtfs_public_transport_graph(bus_dir, service_date=SERVICE_DATE, start_time="07:00", end_time="10:00")
print(bus_graph)
bus_graph.edges_gdf["type"].value_counts()
UrbanGraph(nodes=15, edges=28, is_multigraph=True, is_directed=True, edge_direction_column='oneway', crs='EPSG:32636', type='public_transport')
type
boarding 10
alighting 10
bus 8
Name: count, dtype: int64
bus_edges = bus_graph.edges_gdf
bus_edges.loc[bus_edges["type"].isin(["boarding", "bus"]), ["type", "route", "length_meter", "time_min"]].head(6)
| type | route | length_meter | time_min | |
|---|---|---|---|---|
| 0 | boarding | 7 | 0.000000 | 5.0 |
| 2 | bus | 7 | 654.547498 | 3.0 |
| 3 | boarding | 7 | 0.000000 | 5.0 |
| 5 | bus | 7 | 1064.862804 | 4.0 |
| 6 | boarding | 7 | 0.000000 | 5.0 |
| 8 | bus | 7 | 994.515679 | 3.0 |
The bus feed has no shapes, so each vehicle edge is a straight line between two stops, and its length_meter is that line’s length multiplied by √2 to approximate the street path.
A day without service gives an empty graph and a warning:
sunday_graph = get_gtfs_public_transport_graph(bus_dir, service_date="2026-09-13")
print(sunday_graph)
2026-09-15 14:03:18.433 | WARNING | No GTFS trips match the requested service date
UrbanGraph(nodes=0, edges=0, is_multigraph=True, is_directed=True, edge_direction_column='oneway', crs=None, type='public_transport')
Merge several feeds¶
Concatenating the three feeds would attach the trips of three agencies to one route_id 1. merge_gtfs_feeds qualifies every identifier with the name of its source, here the folder name, and rewrites references together with definitions. The graph builder does the same when it receives a list of feeds.
from iduedu import merge_gtfs_feeds
merged = merge_gtfs_feeds([metro_dir, bus_dir, trolleybus_dir])
merged["routes"][["route_id", "route_short_name", "route_type"]]
| route_id | route_short_name | route_type | |
|---|---|---|---|
| 0 | metro:1 | M3 | 1 |
| 1 | bus:1 | 7 | 3 |
| 2 | trolleybus:1 | 10 | 11 |
Boarding waits by route¶
Scheduled services wait half their mean headway. A frequencies.txt service waits headway_secs / 120 minutes, so the metro running every 240 seconds gets a 2-minute wait.
edges.loc[edges["type"] == "boarding"].groupby("route")["time_min"].median()
route
10 6.0
7 5.0
M3 2.0
Name: time_min, dtype: float64
Stations¶
The metro feed describes each station down to a boarding area. The street entrance leads through an escalator pathway to the boarding area, and a zero-cost station_link connects the boarding area to its platform. Because the platform is reached through the station, its node type is station_platform, and only the entrance (station_entry_exit) is later attached to the walking network.
edges.loc[edges["type"].isin(["pathway", "station_link"]), ["type", "u", "v", "length_meter", "time_min", "oneway"]]
| type | u | v | length_meter | time_min | oneway | |
|---|---|---|---|---|---|---|
| 54 | pathway | 6 | 5 | 49.524590 | 2.0 | False |
| 55 | pathway | 9 | 8 | 49.527140 | 2.5 | False |
| 56 | station_link | 5 | 7 | 2.012799 | 0.0 | False |
| 57 | station_link | 8 | 10 | 2.013028 | 0.0 | False |

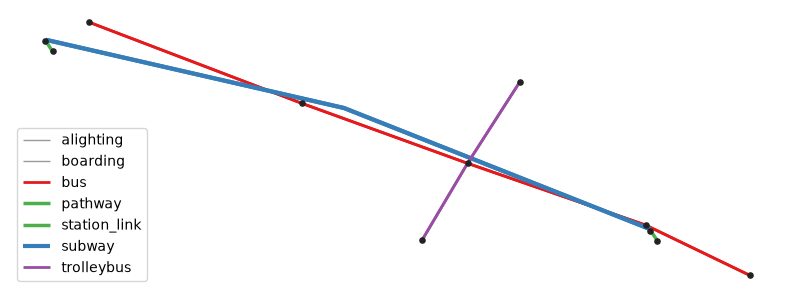

Plot the graph¶
import matplotlib.pyplot as plt
EDGE_STYLE = {
"subway": ("#377eb8", 3.0),
"bus": ("#e41a1c", 2.0),
"trolleybus": ("#984ea3", 2.0),
"pathway": ("#4daf4a", 2.5),
"station_link": ("#4daf4a", 2.5),
"boarding": ("#999999", 1.0),
"alighting": ("#999999", 1.0),
}
fig, ax = plt.subplots(figsize=(10, 6))
for edge_type, group in edges.groupby("type"):
color, width = EDGE_STYLE.get(edge_type, ("#bdbdbd", 1.0))
group.plot(ax=ax, color=color, linewidth=width, label=edge_type)
nodes = public_transport.nodes_gdf
nodes.loc[nodes["type"].isin(["platform", "station_platform", "station_entry_exit"])].plot(
ax=ax, color="#222222", markersize=14, zorder=3
)
ax.legend(loc="lower left")
ax.set_axis_off()
plt.show()
Join with the walking network¶
Build the walking graph first and pass its CRS to the GTFS builder, so both layers share one metric projection. join_pt_walk_graph then attaches platforms and station entrances to nearby walking edges.
from iduedu import get_walk_graph, join_pt_walk_graph
walk = get_walk_graph(osm_id=OSM_ID)
public_transport = get_gtfs_public_transport_graph(
fused, service_date=SERVICE_DATE, start_time="07:00", end_time="10:00", crs=walk.crs
)
intermodal = join_pt_walk_graph(public_transport, walk, max_dist=50)
intermodal
2026-09-15 14:03:20.462 | WARNING | Removing 330 nodes outside the largest connected component. Retaining 19802 of 20132 nodes.
UrbanGraph(nodes=19841, edges=26731, is_multigraph=True, is_directed=True, edge_direction_column='oneway', crs='EPSG:32636', type='intermodal')
Route across the layers¶
Take the walking nodes nearest to a point by Primorskaya and a point on 1-ya Liniya, find the fastest route between them, and turn it into edges to see how the time splits between walking, waiting and riding.
import geopandas as gpd
from shapely.geometry import Point
from iduedu import path_to_edges, single_source_dijkstra_path
points = gpd.GeoSeries([Point(30.2330, 59.9490), Point(30.2860, 59.9410)], crs=4326).to_crs(intermodal.crs)
walk_nodes = intermodal.nodes_gdf.loc[intermodal.nodes_gdf["type"].isna()]
origin, destination = walk_nodes.index[walk_nodes.sindex.nearest(points)[1]]
path = single_source_dijkstra_path(intermodal, origin, destination, weight="time_min")
route = path_to_edges(intermodal, path)
print(f"travel time: {route['time_min'].sum():.1f} min")
route.groupby("type", sort=False)["time_min"].sum().round(1)
travel time: 21.4 min
type
walk 10.9
pathway 4.5
station_link 0.0
boarding 2.0
subway 4.0
alighting 0.0
Name: time_min, dtype: float64

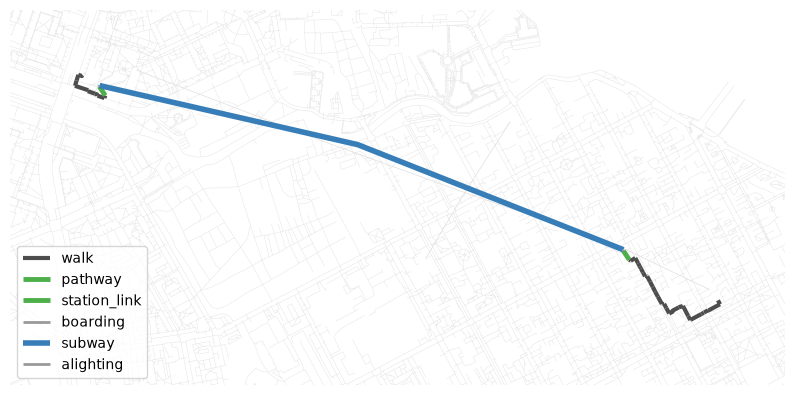

fig, ax = plt.subplots(figsize=(10, 6))
intermodal.edges_gdf.plot(ax=ax, color="#e0e0e0", linewidth=0.3)
for edge_type, group in route.groupby("type", sort=False):
color, width = EDGE_STYLE.get(edge_type, ("#4d4d4d", 2.0))
group.plot(ax=ax, color=color, linewidth=width + 1, label=edge_type)
xmin, ymin, xmax, ymax = route.total_bounds
ax.set_xlim(xmin - 300, xmax + 300)
ax.set_ylim(ymin - 300, ymax + 300)
ax.legend(loc="lower left")
ax.set_axis_off()
plt.show()
