Objects, nearest nodes, and graph projection

This notebook shows how to match external objects to a graph and how to project them onto nearest graph edges.

# To install IduEdu in a clean environment:
# !pip install IduEdu

OSM_ID = 1114252

import geopandas as gpd
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from shapely.geometry import LineString, Point

from iduedu import get_drive_graph

G = get_drive_graph(osm_id=OSM_ID, simplify=True, keep_largest_subgraph=True)
G

2026-07-07 15:18:36.038 | WARNING  | Removing 38 nodes outside the largest strongly connected component. Retaining 707 of 745 nodes.

UrbanGraph(nodes=707, edges=1188, is_multigraph=True, is_directed=True, edge_direction_column='oneway', crs='EPSG:32636', type='drive')

Create simulated objects near roads

The example below creates a small synthetic object layer. We take several road segments, place points on them, and then shift those points perpendicular to the road. This imitates buildings or services located near, but not directly on, the road centerline.

def line_perpendicular_offset_point(line, fraction=0.5, distance=18.0, side=1):
    # Return a point shifted perpendicular to a line for visual test objects.
    point = line.interpolate(fraction, normalized=True)
    distance_along = line.project(point)
    eps = max(min(line.length * 0.03, 8.0), 1.0)
    before = line.interpolate(max(distance_along - eps, 0.0))
    after = line.interpolate(min(distance_along + eps, line.length))

    dx = after.x - before.x
    dy = after.y - before.y
    norm = float(np.hypot(dx, dy))
    if norm == 0:
        return point

    return Point(
        point.x + side * (-dy / norm) * distance,
        point.y + side * (dx / norm) * distance,
    )


def make_focus_area(graph, radius=250):
    # Choose a compact road-rich area near the graph center.
    graph_center = graph.nodes_gdf.geometry.union_all().centroid
    candidate_edges = graph.edges_gdf.loc[graph.edges_gdf.geometry.length > 45].copy()
    seed_idx = candidate_edges.distance(graph_center).sort_values().index[0]
    seed_point = candidate_edges.loc[seed_idx, "geometry"].interpolate(0.5, normalized=True)
    return seed_point.buffer(radius)


def make_simulated_objects(graph, focus_area, count=10, offset_m=50.0):
    # Create simulated point objects near roads inside the focus area.
    # The offset is intentionally visible so projection links are readable.
    local_edges = graph.edges_gdf.loc[graph.edges_gdf.intersects(focus_area)].copy()
    local_edges = local_edges.sort_values("length_meter", ascending=False).head(count)

    records = []
    for i, (_, edge) in enumerate(local_edges.iterrows()):
        fraction = 0.35 + 0.08 * (i % 4)
        point = line_perpendicular_offset_point(
            edge.geometry,
            fraction=fraction,
            distance=offset_m,
        )
        records.append({"object_id": i, "name": f"simulated_object_{i}", "geometry": point})

    objects_gdf = gpd.GeoDataFrame(records, geometry="geometry", crs=graph.crs).set_index("object_id")
    return objects_gdf


focus_area = make_focus_area(G)
objects = make_simulated_objects(G, focus_area)
objects
name geometry
object_id
0 simulated_object_0 POINT (345913.384 6647966.294)
1 simulated_object_1 POINT (345917.793 6648147.475)
2 simulated_object_2 POINT (346510.261 6647723.356)
3 simulated_object_3 POINT (346670.891 6648135.006)
4 simulated_object_4 POINT (346739.248 6648065.285)
5 simulated_object_5 POINT (346177.284 6647609.472)
6 simulated_object_6 POINT (346279.455 6647827.652)
7 simulated_object_7 POINT (346273.338 6647927.625)
8 simulated_object_8 POINT (345970.905 6647802.258)
9 simulated_object_9 POINT (346015.284 6647717.379)
def bounds_around_layers(*layers, margin=80):
    # Return padded bounds around non-empty GeoDataFrames or GeoSeries.
    bounds = []
    for layer in layers:
        if layer is None or len(layer) == 0:
            continue
        bounds.append(layer.total_bounds)
    minx = min(b[0] for b in bounds) - margin
    miny = min(b[1] for b in bounds) - margin
    maxx = max(b[2] for b in bounds) + margin
    maxy = max(b[3] for b in bounds) + margin
    return minx, miny, maxx, maxy


def roads_around_objects(graph, objects_gdf, padding=220):
    # Select only roads and nodes near the example objects for readable plots.
    plot_area = objects_gdf.geometry.union_all().convex_hull.buffer(padding)
    roads = graph.edges_gdf.loc[graph.edges_gdf.intersects(plot_area)].copy()
    nodes = graph.nodes_gdf.loc[graph.nodes_gdf.intersects(plot_area)].copy()
    return plot_area, roads, nodes


def set_plot_window(ax, *layers, margin=80):
    minx, miny, maxx, maxy = bounds_around_layers(*layers, margin=margin)
    ax.set_xlim(minx, maxx)
    ax.set_ylim(miny, maxy)
    ax.set_aspect("equal", adjustable="box")
    ax.set_axis_off()


plot_area, local_roads, local_nodes = roads_around_objects(G, objects)
print("local roads:", len(local_roads))
print("local nodes:", len(local_nodes))

local roads: 29
local nodes: 14

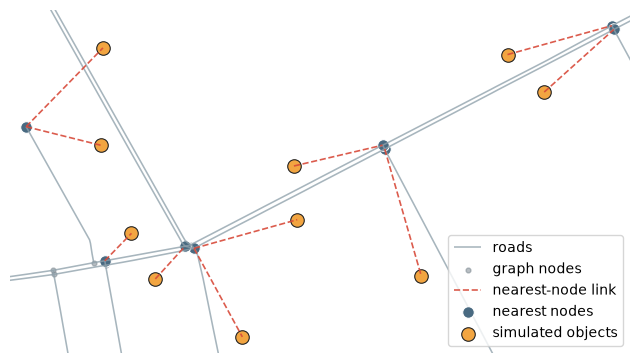

Nearest graph nodes

nearest_nodes maps each object geometry to the nearest existing graph node. This is fast and useful for coarse object-to-graph matching, but it does not change graph topology.

from iduedu import nearest_nodes

objects["nearest_node"] = nearest_nodes(G, objects)
objects[["name", "nearest_node"]]
name nearest_node
object_id
0 simulated_object_0 727
1 simulated_object_1 727
2 simulated_object_2 367
3 simulated_object_3 392
4 simulated_object_4 393
5 simulated_object_5 326
6 simulated_object_6 326
7 simulated_object_7 366
8 simulated_object_8 306
9 simulated_object_9 324
nearest_node_geoms = G.nodes_gdf.loc[objects["nearest_node"], "geometry"]
nearest_lines = gpd.GeoDataFrame(
    geometry=[LineString([object_point, node_point]) for object_point, node_point in zip(objects.geometry, nearest_node_geoms)],
    crs=G.crs,
)

fig, ax = plt.subplots(figsize=(8, 8))
local_roads.plot(ax=ax, color="#8FA1AB", linewidth=1.15, alpha=0.78, label="roads")
local_nodes.plot(ax=ax, color="#7E8A92", markersize=12, alpha=0.55, label="graph nodes")
nearest_lines.plot(ax=ax, color="#D84A3A", linewidth=1.2, linestyle="--", alpha=0.9, label="nearest-node link")
nearest_node_geoms.plot(ax=ax, color="#496A81", markersize=70, edgecolor="white", linewidth=0.8, label="nearest nodes")
objects.plot(ax=ax, color="#F2A541", markersize=95, edgecolor="#222222", linewidth=0.8, label="simulated objects")
set_plot_window(ax, objects, nearest_node_geoms, margin=30)
ax.legend(loc="lower right", frameon=True)
plt.show()
../_images/728c8a3ba8e6afd9d1458fb4e55d273f530732d8257db2a9889162a4c6f733ae.png

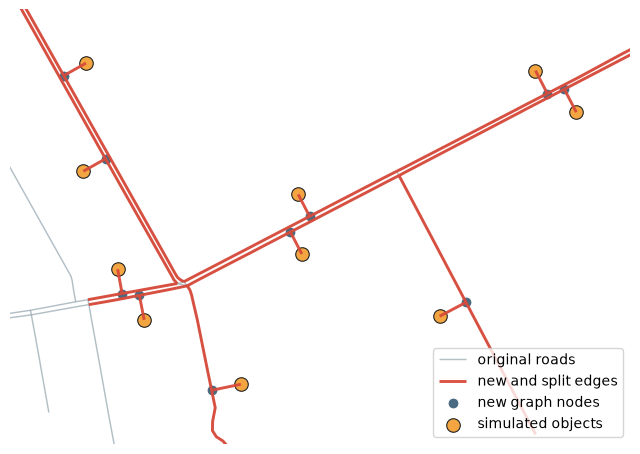

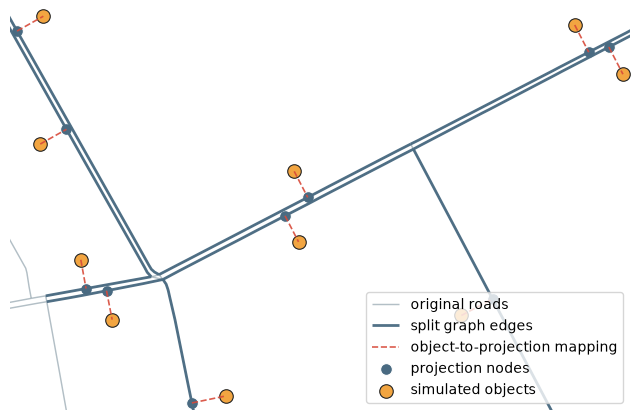

Method form

For in-memory workflows, UrbanGraph.project_objects applies the changes and returns the updated graph plus the object-to-node mapping.

G_method, object2node_method = G.project_objects(
    objects,
    WALK_SPEED_M_PER_MIN,
    max_dist=250,
    add_link_edge=True,
)

G_method, object2node_method.head()

(UrbanGraph(nodes=727, edges=1208, is_multigraph=True, is_directed=True, edge_direction_column='oneway', crs='EPSG:32636', type='drive'),
 object_index
 0    751
 1    752
 2    753
 3    754
 4    755
 Name: node_id, dtype: int64)
