Point Clusterization

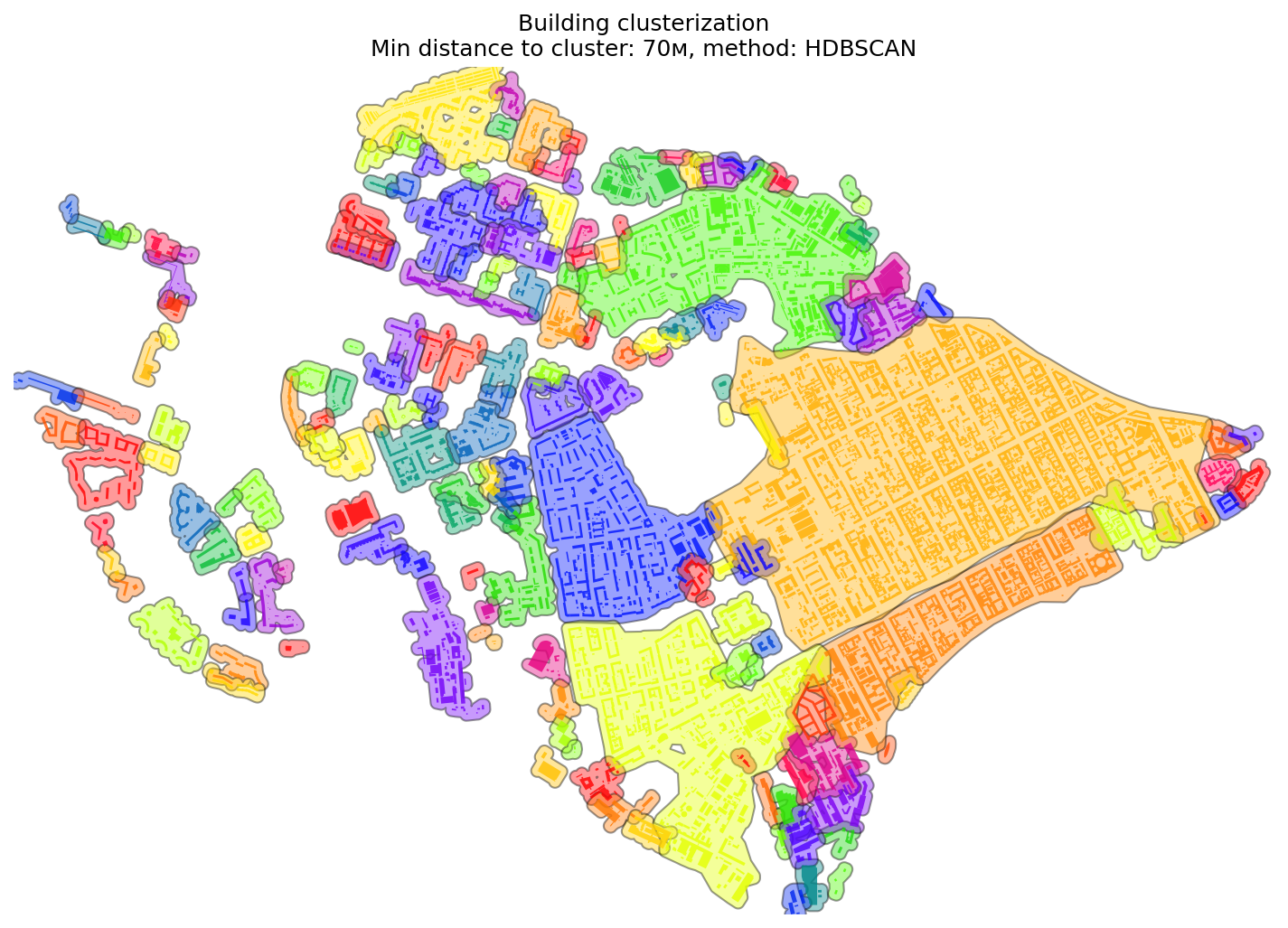

Clusterization groups nearby points into polygons based on spatial proximity and minimum cluster size.
It can be used for identifying dense urban areas, service hubs, or catchment zones.

---

Cluster Generation

Clusters are generated using spatial rules:

• Minimum distance between points to be included in the same cluster.
• Minimum number of points required to form a valid cluster.

objectnat.get_clusters_polygon(points, min_dist=100, min_point=5, method='HDBSCAN', service_code_column='service_code')

Generate cluster polygons for given points based on a specified minimum distance and minimum points per cluster. Optionally, calculate the relative ratio between types of points within the clusters.

Parameters:

Name	Type	Description	Default
points	GeoDataFrame	GeoDataFrame containing the points to be clustered. Must include a 'service_code' column for service ratio calculations.	required
min_dist	float | int	Minimum distance between points to be considered part of the same cluster. Defaults to 100.	100
min_point	int	Minimum number of points required to form a cluster. Defaults to 5.	5
method	Literal['DBSCAN', 'HDBSCAN']	The clustering method to use. Must be either "DBSCAN" or "HDBSCAN". Defaults to "HDBSCAN".	'HDBSCAN'
service_code_column	str	Column, containing service type for relative ratio in clasterized polygons. Defaults to "service_code".	'service_code'

Returns:

Type	Description
tuple[GeoDataFrame, GeoDataFrame]	A tuple containing the clustered polygons GeoDataFrame and the original points GeoDataFrame with cluster labels.

Source code in src\objectnat\methods\point_clustering\cluster_points_in_polygons.py

def get_clusters_polygon(
    points: gpd.GeoDataFrame,
    min_dist: float | int = 100,
    min_point: int = 5,
    method: Literal["DBSCAN", "HDBSCAN"] = "HDBSCAN",
    service_code_column: str = "service_code",
) -> tuple[gpd.GeoDataFrame, gpd.GeoDataFrame]:
    """
    Generate cluster polygons for given points based on a specified minimum distance and minimum points per cluster.
    Optionally, calculate the relative ratio between types of points within the clusters.

    Parameters:
        points (gpd.GeoDataFrame):
            GeoDataFrame containing the points to be clustered.
            Must include a 'service_code' column for service ratio calculations.
        min_dist (float | int, optional):
            Minimum distance between points to be considered part of the same cluster. Defaults to 100.
        min_point (int, optional):
            Minimum number of points required to form a cluster. Defaults to 5.
        method (Literal["DBSCAN", "HDBSCAN"], optional):
            The clustering method to use. Must be either "DBSCAN" or "HDBSCAN". Defaults to "HDBSCAN".
        service_code_column (str, optional):
            Column, containing service type for relative ratio in clasterized polygons. Defaults to "service_code".

    Returns:
        (tuple[gpd.GeoDataFrame, gpd.GeoDataFrame]):
            A tuple containing the clustered polygons GeoDataFrame and the original points GeoDataFrame with cluster labels.
    """
    if method not in ["DBSCAN", "HDBSCAN"]:
        raise ValueError("Method must be either 'DBSCAN' or 'HDBSCAN'")
    original_crs = points.crs
    local_crs = points.estimate_utm_crs()
    points = points.to_crs(local_crs)
    services_select = _get_cluster(points, min_dist, min_point, method)

    if service_code_column not in points.columns:
        logger.warning(
            f"No {service_code_column} column in provided GeoDataFrame, cluster polygons will be without relative ratio"
        )
        points[service_code_column] = service_code_column

    points_normal = services_select[services_select["cluster"] != -1].copy()
    points_outlier = services_select[services_select["cluster"] == -1].copy()

    if len(points_normal) > 0:
        cluster_service = points_normal.groupby("cluster", group_keys=True).apply(
            _get_service_ratio, service_code_column=service_code_column
        )
        if isinstance(cluster_service, pd.Series):
            cluster_service = cluster_service.unstack(level=1, fill_value=0)

        polygons_normal = points_normal.dissolve("cluster").concave_hull(ratio=0.1, allow_holes=True)
        df_clusters_normal = pd.concat([cluster_service, polygons_normal.rename("geometry")], axis=1)
        cluster_normal = df_clusters_normal.index.max()
        points_normal["outlier"] = False
        df_clusters_normal["outlier"] = False
    else:
        df_clusters_normal = None
        cluster_normal = 0

    if len(points_outlier) > 0:
        clusters_outlier = cluster_normal + 1
        new_clusters = list(range(clusters_outlier, clusters_outlier + len(points_outlier)))
        points_outlier.loc[:, "cluster"] = new_clusters

        cluster_service = points_outlier.groupby("cluster", group_keys=True).apply(
            _get_service_ratio, service_code_column=service_code_column
        )
        if isinstance(cluster_service, pd.Series):
            cluster_service = cluster_service.unstack(level=1, fill_value=0)

        df_clusters_outlier = cluster_service.join(points_outlier.set_index("cluster")["geometry"])
        points_outlier["outlier"] = True
        df_clusters_outlier["outlier"] = True
    else:
        points_outlier = None
        df_clusters_outlier = None

    df_clusters = pd.concat([df_clusters_normal, df_clusters_outlier]).fillna(0).set_geometry("geometry")
    df_clusters["geometry"] = df_clusters["geometry"].buffer(min_dist / 2)
    df_clusters = df_clusters.reset_index().rename(columns={"index": "cluster"})

    points = pd.concat([points_normal, points_outlier])

    return df_clusters.to_crs(original_crs), points.to_crs(original_crs)

---
